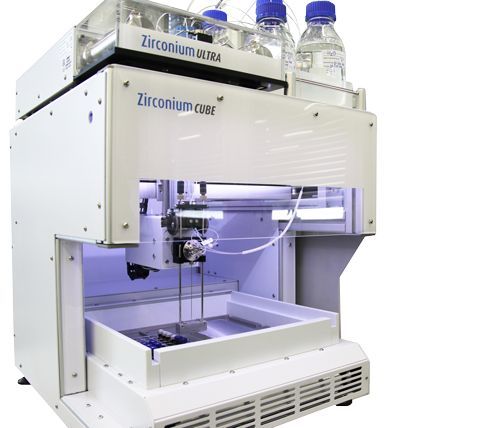

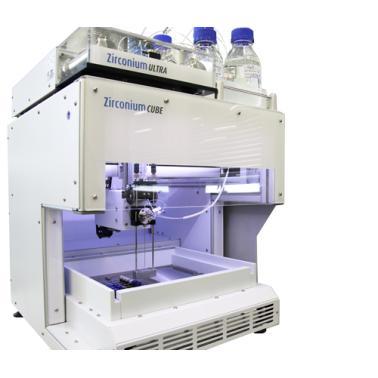

Zirconium™ CUBE Autosampler

* Total gradient flow rate: 20 nl/min - 500 μl/min @ 1000 bar * 6 DWP Racks (2304 samples on MTP384), cooled * Injection volume: 0.3 μl - 45 μl (internal or external loop) * Precision: 0.2 % CV (full loop), 1 % CV (partial loop) * Carryover: 7 ppm-17

商品编号：

GDZ010866
本店售价：

询价
商品货号：

GDZ010866
商品品牌：

Prolab
注册用户：

询价
市场价格：

询价
商品重量：

22.000千克
此商品为免运费商品，计算配送金额时将不计入配送费用
用户评价：

(已有0人评论)

购买数量：

减少数量增加数量
商品总价：
加入购物车

加关注

商品介绍
规格参数
商品评价
售后保障

商品名称：Zirconium™ CUBE Autosampler
商品编号：GDZ010866
品牌：Prolab
上架时间：2020-06-28
商品毛重：22.000千克
库存： 100 台

Overview
The Zirconium Ultra micro- and nano-UHPLC pump of the Swiss independent vendor Prolab Instruments has been a big success in many application fields such as metabolomics, drug discovery, proteomics, and lately, single-cell proteomics with ultra-low nanoflow requirements. Following our users' requests for a more integrated system for low-flow applications, Prolab has developed an autosampler to complement the Zirconium pumps - the Zirconium CUBE. The Zirconium system now forms a complete HPLC front-end for all low-flow and high speed applications - leveraging the pump's unmatched range of low nl/min to high μl/min flow rates and the autosampler's unique integration features to minimize dead volumes, contaminated surfaces, waiting time, and overall complexity.
A Host of Innovations
When the sample won't come to the injector, the injector has to go to the sample: Unique on the market, the Zirconium CUBE autosampler is built around a mobile injector unit that includes the injector valve and loop, the sample aspiration needle, as well as the needle wash station. This whole assembly is moved to each sample vial.
The uncommon design approach has a row of stunning advantages: By the rigid connection between the needle and the sample loop, the dead volume and contaminated surface are minimized, and it is possible to use a range of different materials: Flexible fused silica or PEEK capillaries for lowest sample volumes or biocompatibility requirements, stainless steel, but also titanium can be used for the needle as well as for the loop.
Another obvious advantage of the concept is the cycle time saved: The needle does not need to be moved to an injector port nor a wash station. And with the wash station sitting right on top of the needle,sample stains never get to dry before they are immediately washed off.
A Host of Innovations
A key innovation of the CUBE autosampler is its mobile wash unit which cleans the needle between sample injections. It all happens during the time the needle needs to move in and out of the sample vials. No time is wasted moving to a separate wash position, so the stains get no chance to dry on the needle before they are washed off.
High speed and cleanliness do not contradict each other any more!
Minimizing Dead Volume
Dead volume is critical in low-flow HPLC since it equals dead time. Minimizing it directly translates to reduced cycle times and higher throughput. Leveraging the closed-loop flow control algorithm of the Zirconium binary pump, the mixing of two eluents can take place very close to the injector valve, reducing the delay time for the analytical gradient from 20 minutes to 15 seconds in a 300 nl/ min example application.
The delay volume between injector and column and ion source can be minimized when using a special single-rack software configuration, where the injector is fenced to a limited rectangle in the front-right corner of its moving range, allowing the use of the shortest possible transfer capillaries.
Using integrated columns+spray tips further contributes to the reduction of dead volume after the separation, thereby not only saving time but also improving the sharpness of peaks

Specifications

Zirconium CUBE Autosampler Specifications

Rack types DWP format: HPLC48, HPLC54, DWP96, MTP384

Samples capacity Max. 6 Racks (2304 samples on MTP384)

Sample Pick-up Volume 0.1 – 30 µl

Minimum Loop Volume 0.5 µl (external loop) or smaller (internal loop)

Max. operating pressure 18,000 psi (1200 bar)

Wash Eluents 2

Precision 0.2 % CV (full loop injection)

1 % CV (partial loop injection)

Carryover 7 ppm. - 17 ppm. Tested with compounds Thiamine, Verapamile, Loparamide, and Chlorhexidine. Gauge 22s stainless steel needle, 5 µl stainless steel loop, full loop injection, standard wash procedure

Needle Types Stainless Steel, Fused Silica, Titanium, PEEK

Sample compartment Ambient to 4 °C (ΔT max. 24 °C)

temperature control

Software controls User-friendly stand-alone software

Software drivers for Chromatography Data Systems of various vendors

Software Development Kit (SDK) for custom/OEM integrations

PC connection RS232, Ethernet (TCP/IP)

I/O Interfaces 4 digital inputs, 4 digital outputs (isolated), freely assignable

Accessory interfaces Serial control bus for external valve drives

Column oven

Power Requirements 100-240V AC, 50/60 Hz, max. 240 W

Dimensions (w×h×d) 48cm×54cm×57 cm

Weight 22 kg

Standards Conformance Low-Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

DIN EN 61010-1:2010

DIN EN 61326-1:2013

Specifications are subject to change without prior notice. All trademarks are the property of their respective owners
