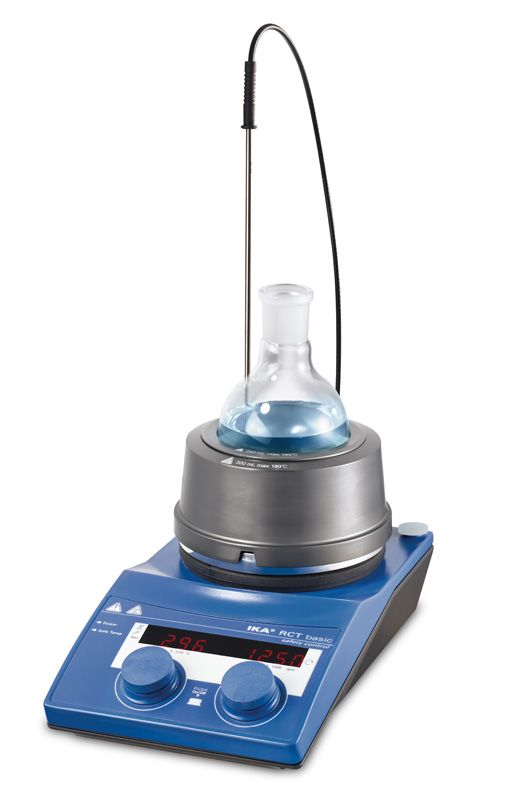

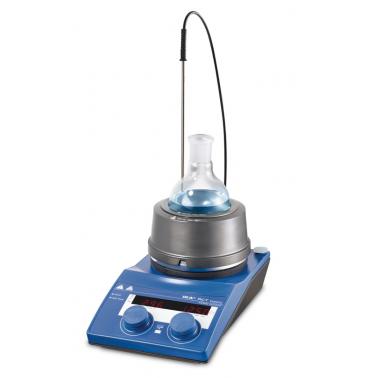

The reaction block allows synthesis to be carried out in round flasks at temperatures of up to 180 °C. This system ensures optimal heat transfer from the heating plate directly into the medium. Uniform mixing is also guaranteed because there is no interference to the magnetic field from the aluminium blocks. The PTFE coating prevents burning and ensures that working with the system is safe. Reaction blocks are available in three standard sizes. These can be adapted to various flask sizes using the appropriate inserts.
Package consists of:
搅拌点位数目 |
1 |
最大搅拌量 (H2O) |
20 l |
电机输入功率 |
16 W |
电机输出功率 |
9 W |
转速显示 |
LED |
速度范围 |
0/50 - 1500 rpm |
搅拌子最大长度 |
80 mm |
加热输出功率 |
600 W |
加热速度 1升H2O in H 15) |
6.5 K/min |
加热温度范围 |
室温 - 310 °C |
加热温度控制 |
LED |
加热温度控制精确度 |
1 ±K |
转速控制 |
无级 |
可调安全温度回路最小值 |
50 °C |
可调安全温度回路最大值 |
360 °C |
外接温度传感器接口 |
PT1000 |
带传感器控温精确度 |
1 ±K |
工作盘材质 |
铝合金 |
工作盘外形尺寸 |
Ø 135 mm |
外形尺寸 |
160 x 85 x 270 mm |
重量 |
2.5 kg |
允许环境温度 |
5 - 40 °C |
允许相对湿度 |
80 % |
DIN EN 60529 保护方式 |
IP 42 |
电压 |
220 - 230 / 115 / 100 V |
频率 |
50/60 Hz |
仪器输入功率 |
650 W |
